Cheltenham Ice Rink

Fews Solution

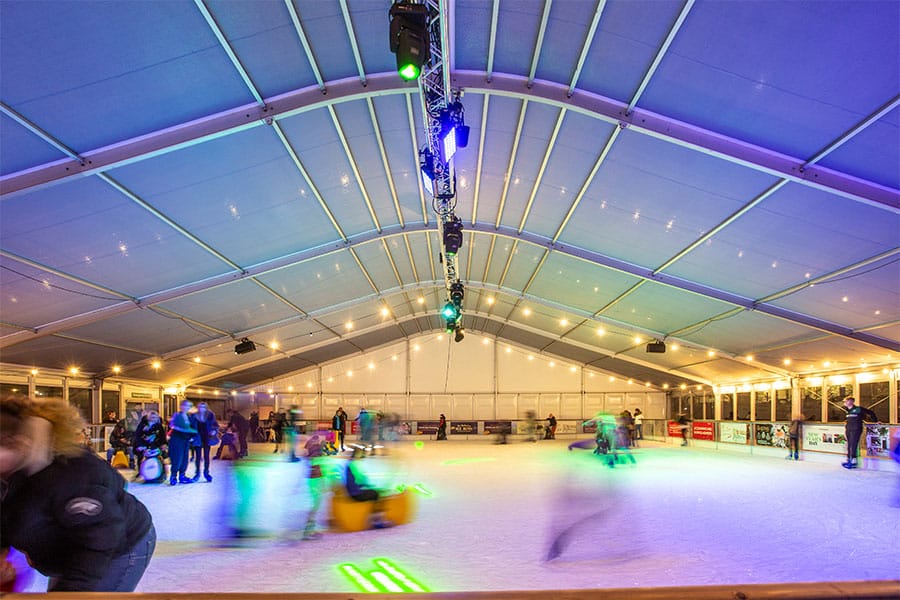

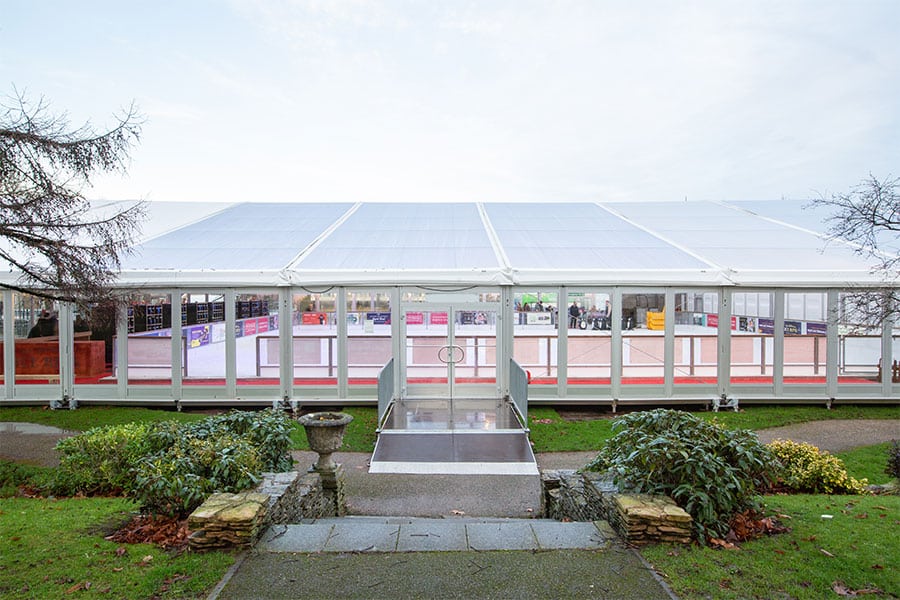

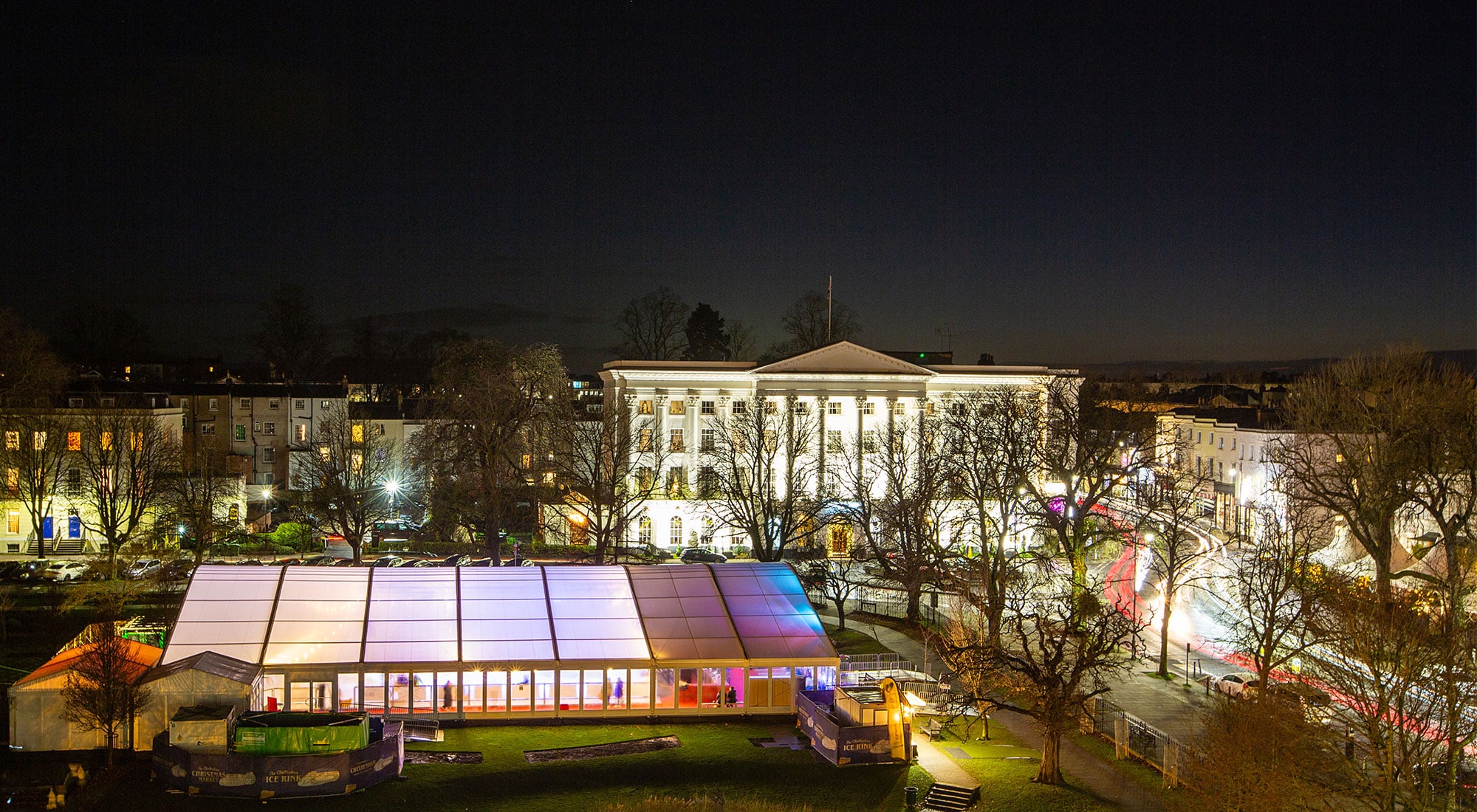

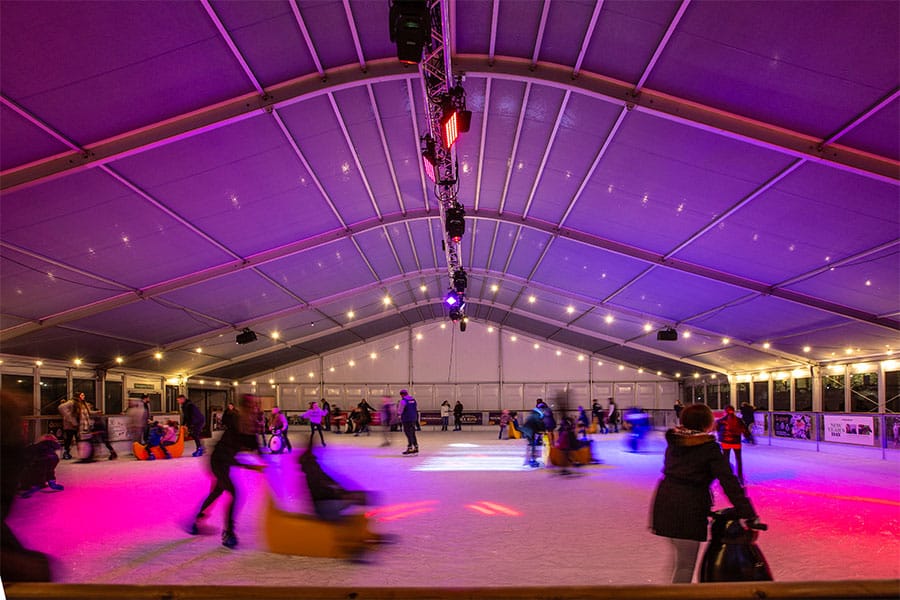

We were approached by S3K group to provide a festive ice rink right in the heart of the Cheltenham this Christmas. Fews constructed an effective structure to house a temporary ice rink which incorporated a festive atmosphere within. The 25m x 35m structure included a curved clear PVC roof which created a snow globe effect to the ice rink, enticing anyone passing by to come and join in the ice skating fun.

Due to health and safety reasons of the event there was a 5m x 10m welfare/treatment structure, beside the main ice rink structure, to provide storage and space right next to the main structure.

Ice Rink in a Marquee

The ice rink in order to maintain itself required a structure which provided storage for maintenance equipment like the 1800kg Zamboni which maintains the ice.

Fews provided a Grid floor system with phenolic board finish which was sufficient in supporting the structure which required extra support due to uneven / unstable ground below due to the location it was situated in. This supporting floor structure enabled for the storage of the heavy maintenance equipment.

Specifications

Ice Rink

  • 25m x 35m clearspan premium structure with curved pvc roof on 3m leg
  • 25m x 5m Clear PVC Roof
  • Glass panel Walling
  • ABS panel Walling
  • 2 x 2.5m Glass Double Door with Emergency Exit
  • 1.25m Glass Single Door with Emergency Exit
  • 25m Wide x 35m Long GRID Floor System with Phenolic Board Finish,
    with Premium Marquee on Top, Floor Staked to Ground
  • 3 x ramps with Phenolic Timber Boards and steel hand rails

Welfare structure

  • 5m x 10m Clearspan Premium Structure with Apex PVC Roof on 3m Leg
  • ABS Walling
  • 5m Wide x 10m Long GRID Floor System with Phenolic Board Finish, with Premium Marquee on Top, Floor Staked to Ground



ZAMBONI STORE

  • 5m x 5m Clearspan Premium Structure with Apex PVC Roof on 3m Leg
  • Maximum Weight of Zamboni 1800kg
  • ABS Walling
  • 5m Wide x 5m Long GRID Floor System with Phenolic Board Finish, with Premium Marquee on Top, Floor Staked to Ground
